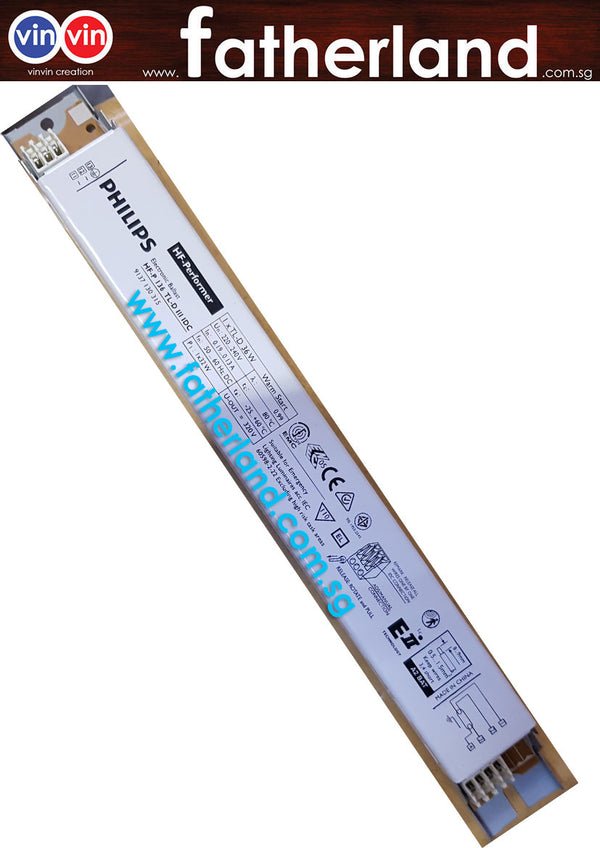

Philips HF-P 136TLD 1 x 36W Electronic ballast

Philips HF-P 136TLD 1 x 36W Electronic ballast HF-P 118/136 TL-D III 220-240V 50/60 Hz Full Product Code: 872790091164000 Order code: 913713031566 Application Code III Type Version IDC Lamp Type ...

$21.50

Product Code:

Product Type:

Add to Wishlist

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

More Information
Reviews
Size Chart
Custom Tab

Philips HF-P 136TLD 1 x 36W Electronic ballast
HF-P 118/136 TL-D III 220-240V 50/60 Hz
Full Product Code: 872790091164000
Order code: 913713031566
Application Code
III
Type Version
IDC
Lamp Type
TL-D
Number of Lamps
1 piece/unit
Number of Products on MCB (16A Type B) (Nom)
28
Automatic Restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Nom)
45 kHz
Ignition Method
Programmed Start
Crestfactor (Max)
1.7
Power Factor 100% Load (Nom)
0.99
Ignition Time (Max)
0.9 s
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Nom)
0.5 mA
Inrush Current Width
0.25 ms
Constant Wattage Deviation
-2%/+2%
Ballast Factor (Nom)
1
Power Losses (Nom)
2.5-4.1 W
Inrush Current Peak (Max)
18 A
Wiring
Connector Type Input Terminals
WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Cable Capacity Output Wires Mutual (Nom)
200 pF
Connector Type Output Terminals
WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Cable Length Hot Wiring
0.75 m
Wire Striplength
8.0-9.0 mm
Dual Fixture Master/Slave
Not applicable [ Master/Slave oper. not applicable]
Input Terminal Cross Section
0.50-1.00 mm²
Output Terminal Cross Section
0.50-1.00 mm²
Cable Capacity Output Wires to Earth (Nom)
200 pF
System characteristics
Rated Ballast-Lamp Power
36/18 W
Rated Lamp Power on TL-D
36/18 W
System Power on TL-D
35.2/19.1 W
Lamp Power on TL-D
31.1/16.6 W
Power Loss on TL-D
4.1/2.5 W
Rated Lamp Power on PL-L
36 W
System Power on PL-L
34.6 W
Lamp Power on PL-L
30.7 W
Power Loss on PL-L
3.9 W
Temperature
T-Ambient (Max)
60 °C
T-Ambient (Min)
-25 °C
T-Storage (Max)
50 °C
T-Storage (Min)
-40 °C
T-Case Lifetime (Nom)
80 °C
T-Case Maximum (Max)
80 °C
T-Ignition (Max)
60 °C
T-Ignition (Min)
-25 °C
Mechanical and Housing
Housing
L 280x30x28
Emergency Operation
Nominal Light Output After 60 Seconds
100% of EBLF
Battery Voltage Lamp Ignition
186-275 V
Normal Operating Voltage (DC)
220-240 V
Battery Voltage Lamp Operation
186-275
Battery Voltage Guaranteed Operation
176-275 V
Battery Voltage Guaranteed Ignition
186-275 V
Emergency Ballast Lumen Factor (EBLF) (Nom)
0.7 %
Nominal Light Output After 5 Seconds
50% of EBLF
Approval and Application
Energy Efficiency Index
A2 BAT
IP Classification
IP 20 [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz
EN55015
EMI 30 MHz ... 1000 MHz
EN55022 level B
Safety Standard
IEC 61347-2-3
Performance Standard
IEC 60929
Quality Standard
ISO 9000:2000
Environmental Standard
ISO 14001
Harmonic Current Emission Standard
IEC 61000-3-2
EMC Immunity Standard
IEC 61547
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Humidity Standard
EN 61347-2-3 clause 11
Approval Marks
CE marking
ENEC certificate
VDE-EMV certificate
Temperature Marking
Yes
Emergency Standard
IEC 60598-2-22
Hum And Noise Level
< 30 dB(A)
Product Data
Full product code
872790091164000
Order product name
HF-P 118/136 TL-D III 220-240V 50/60 Hz
EAN/UPC - Product
8711500999641
Order code
913713031566
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
913713031566
Net Weight (Piece)
0.202 kg
