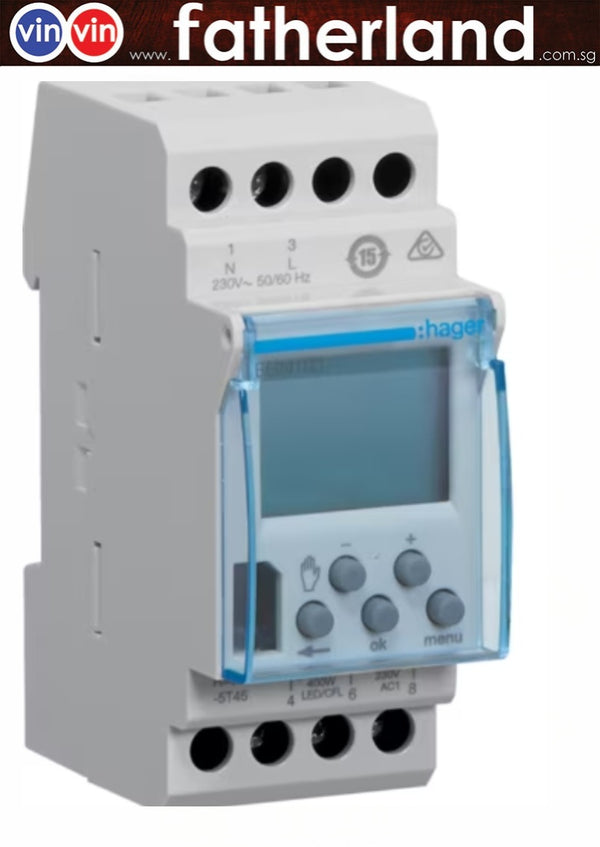

EGN103 - 1 channel digital time switch weekly cycle
7 Day Time SwitchesDigital Weekly Time Switches
1 channel digital time switch weekly cycle
EGN103
EAN
3250618502435
Packaging
1 Piece
Add to a list
EGN103 is not Bluetooth compatible as supplied, the optional accessory EGN003 Programming key is required.

Download the data sheet
Technical properties
Architecture
Fixing mode
DIN rail type O (symmetrical)
Functions
With GPS
No
hour program
Yes
Configuration
Number of modules
2
Main electrical features
Rated operational voltage Ue
230 V AC
Nominal voltage
230 V
Type of supply voltage
AC
Frequency
50/60 Hz
Electric current
Switching current at 250 V~
16 A
Dimensions
Depth of installed product
61.6 mm
Height of installed product
90 mm
Width of installed product
35.8 mm
Frequency
Frequency range
50…60 Hz
Power
Power consumed
0.39 VA
Power consumption (operation)
350 mW
Measurement
Running accuracy
± 1.5 s/day
Fluorescent bulbs control
Max. power with fluorescent parallel lamps
400 W
Max. power fluo. duo lamp comp. series
1000 W
Compact fluorescent lamps
400 W
Fluorescent lamps parallel compensated
400 W
Max. load fluorescent lamp
400 W
Incandescent bulbs control
Max. power with incandescent lamps
2300 W
230 V incandescent lamps and halogen lamps
2300 W
Connection
Number of contacts
1
Type of contacts
1 changeover
Type of connection
with screw terminal
Settings
Number of program steps
56
Shortest switching time
1 mn
Annual program
No
Astro program
No
Daily program
Yes
Weekly program
Yes
Scope of delivery
Memory card included
No
Equipment
Number of channels
1
Number of switching times for on/off
56
Supply failure reserve
5 years
Summer-/winter switchover
Yes
With cyclic program
No
With holidays program
No
With Impulse program
No
With preset programm
No
With random program
No
Use
Local operation/hand operation
Yes
Safety
Protection index IP
IP20
Use conditions
Working accuracy
± 1,5 s / 24H
Relative humidity
95 %
See less
