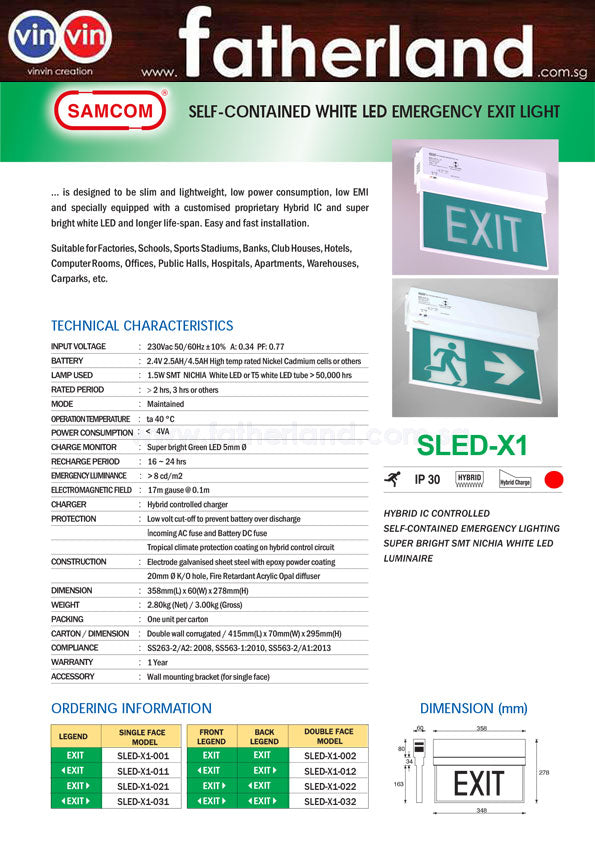

SAMCOM MODEL SLED-X1-WHT

Hybrid IC Controlled Self-Contained Emergency Lighting
LED Luminaire (Recess Mounting)

… is designed and specially equipped with a customized proprietary Hybrid IC and a very high-efficiency current feed push-pull sine wave inverter, to fully utilize the battery power and to prevent the frequent blackening of the tube. Compact and lightweight. Easy and fast installation with the thumb-press quick-lock fastening system cuts down installation/ maintenance time drastically.
Suitable for Factories, Schools, Sports Stadiums, Banks, Offices, Public Halls, Hospitals, Apartments, Warehouses, Carparks, etc..

nput Voltage	:	230Vac 50/60Hz ± 10% A: 0.34 PF: 0.77
Battery	:	2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others
Lamp Used	:	1.5W SMT NICHIA White LED
Rated Period	:	> 2 hrs, 3 hrs or others
Mode	:	Maintained
Operation Temperature	:	ta 40 °C
Power Consumption	:	4.6W
Change Monitor	:	Super bright Green LED 5mm Ø
Recharge Period	:	16 ~ 24 hrs
Emergency Luminance	:	> 8 cd/m2
Electromagnetic Field	:	17m gause @ 0.1m
Charger	:	Hybrid controlled charger
Protection	:	Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit
Construction	:	Electrode galvanised sheet steel with epoxy powder coating. 20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser
Dimension	:	358mm(L) x 60mm(W) x 278mm(H)
Weight	:	2.80kg(Net) / 3.00kg(Gross)
Packing	:	One unit per carton
Carton/Dimension	:	Double wall corrugated / 415mm(L) x 70mm(W) x 295mm(H)
Compliance	:	SS563-1:2010, SS563-2:2010/A1:2013 SSIEC 60598:PART 1: 2016
Warranty	:	1 Year from samcom
