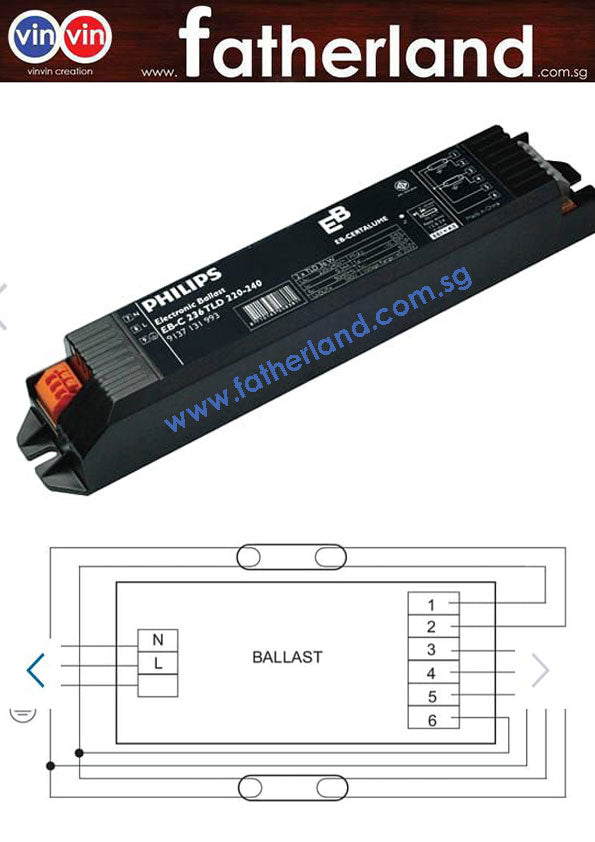

PHILIPS EB-C 236 TL-D 220-240V 50/60Hz

EB-C 236 TL-D 220-240V 50/60Hz Specifications General Information Type Version mk1 Lamp Type TL-D Number of Lamps 2 piece/unit Number of Products on MCB (16A Type B) (Nom) 28 Automatic...
$19.50
Product Code:

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

EB-C 236 TL-D 220-240V 50/60Hz

Specifications

General Information
Type Version
mk1
Lamp Type
TL-D
Number of Lamps
2 piece/unit
Number of Products on MCB (16A Type B) (Nom)
28
Automatic Restart
No
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Nom)
42-60 kHz
Power Factor 100% Load (Nom)
0.97
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Nom)
0.5 mA
Power Losses (Nom)
8.0 W
Wiring
Connector Type Input Terminals
250 manual connector  [ Suitable for manual wiring and easy release button]
Cable Capacity Output Wires Mutual (Max)
120 pF
Color Input Terminals
Orange
Color Output Terminals
Grey
Connector Type Output Terminals
250 manual connector  [ Suitable for manual wiring and easy release button]
Cable Length Hot Wiring
0.75 m
Wire Striplength
9.0-10.0 mm
Dual Fixture Master/Slave
Possible, lamp wires 2m max. length  [ Master/Slave operation possible]
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Cable Capacity Output Wires to Earth (Max)
120 pF
System characteristics
Rated Ballast-Lamp Power
36 W
Rated Lamp Power on TL-D
36 W
System Power on TL-D
69.7 W
Lamp Power on TL-D
61.6 W
Power Loss on TL-D
8.0 W
Temperature
T-Case Lifetime (Nom)
75 °C

Mechanical and Housing
Housing
L 210x40x30

Emergency Operation
Battery Voltage Lamp Ignition
165-253 V

Approval and Application
Energy Efficiency Index
A2
IP Classification
IP 20  [ Ingress Protection 20]
Overvoltage Protection 276Vac
48 h
EMI 9 kHz ... 30 MHz
EN55015
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb
Humidity Standard
IEC 61347-2-3
Approval Marks

CCC certificate

CB Certificate

Product Data
Full product code
872790085880800
Order product name
EB-C 236 TL-D 220-240V 50/60Hz
EAN/UPC - Product
8711500998163
Order code
913713199315
Numerator - Quantity Per Pack
1
