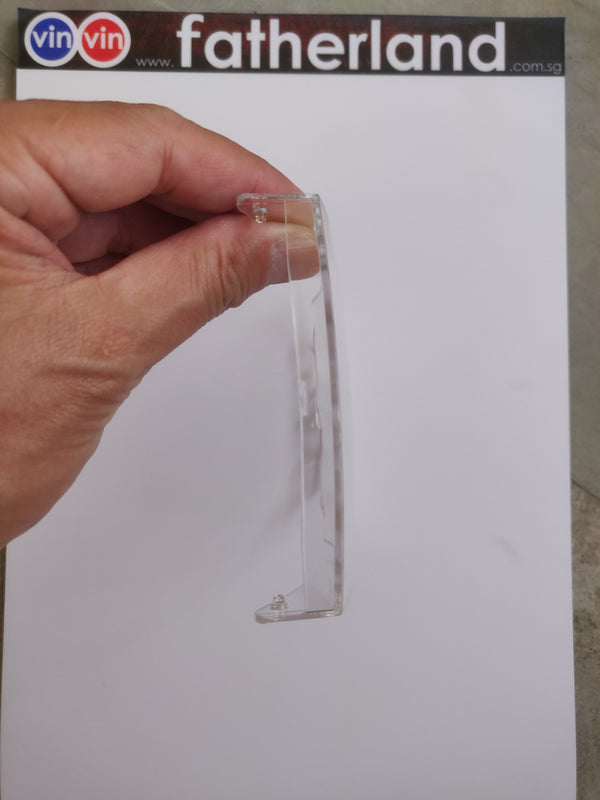

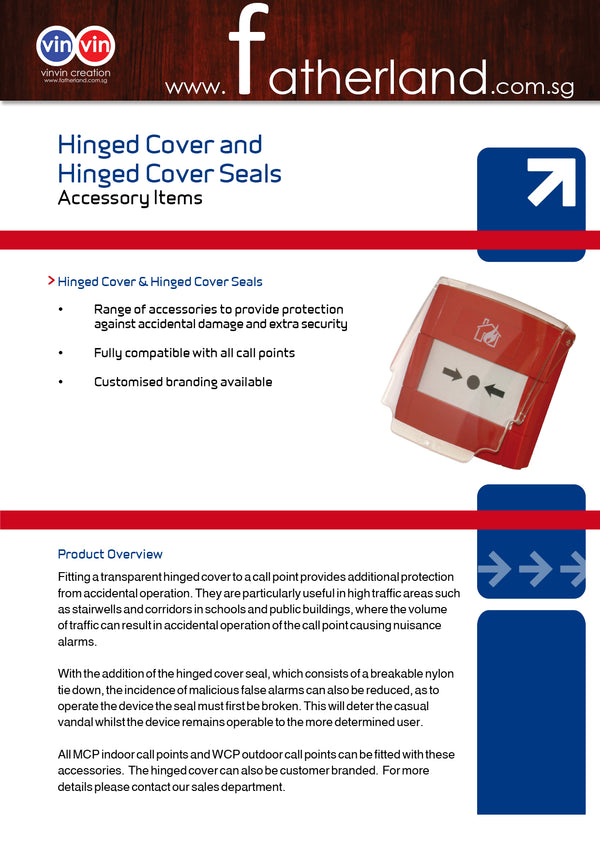

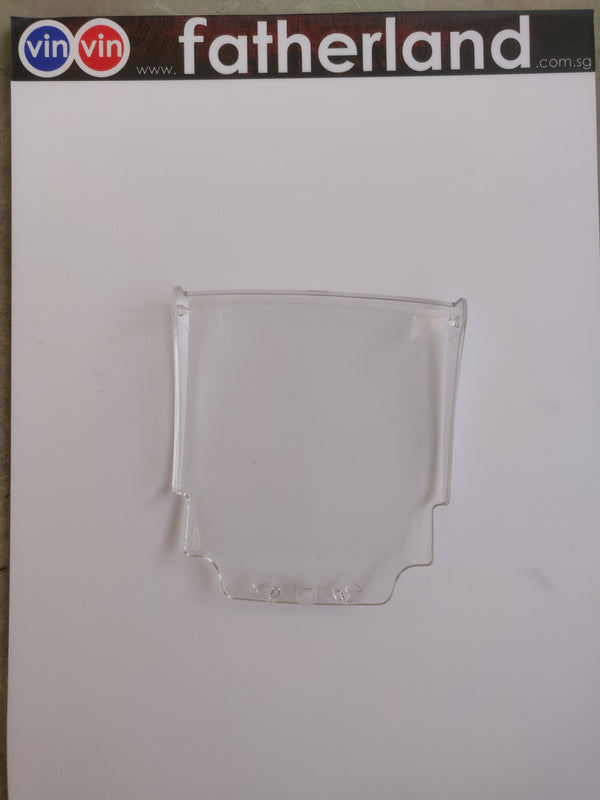

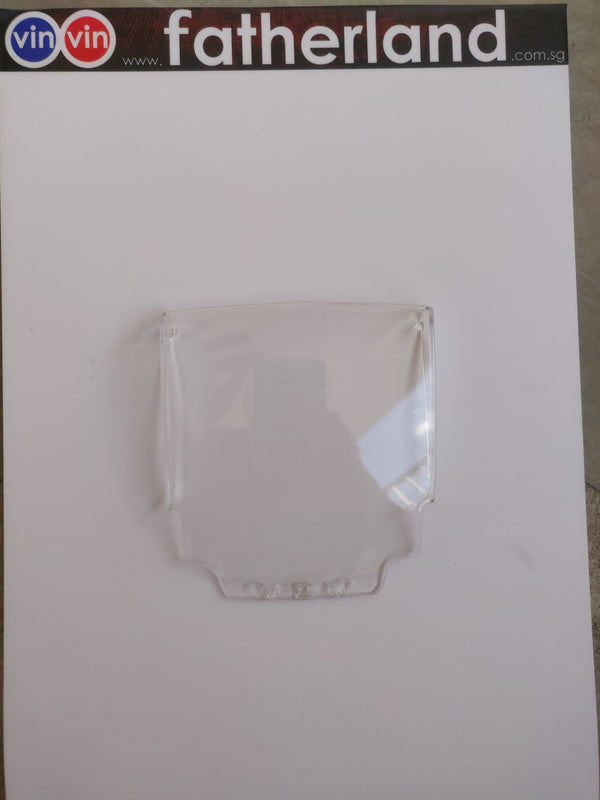

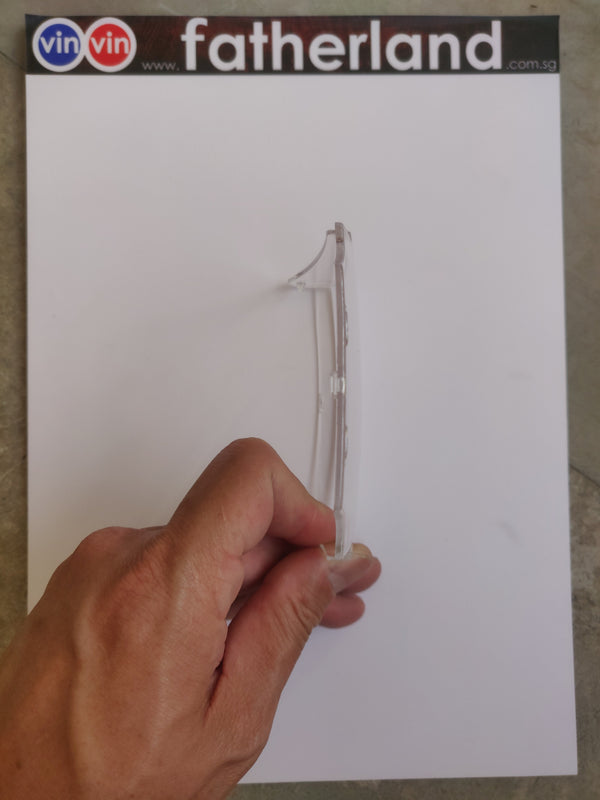

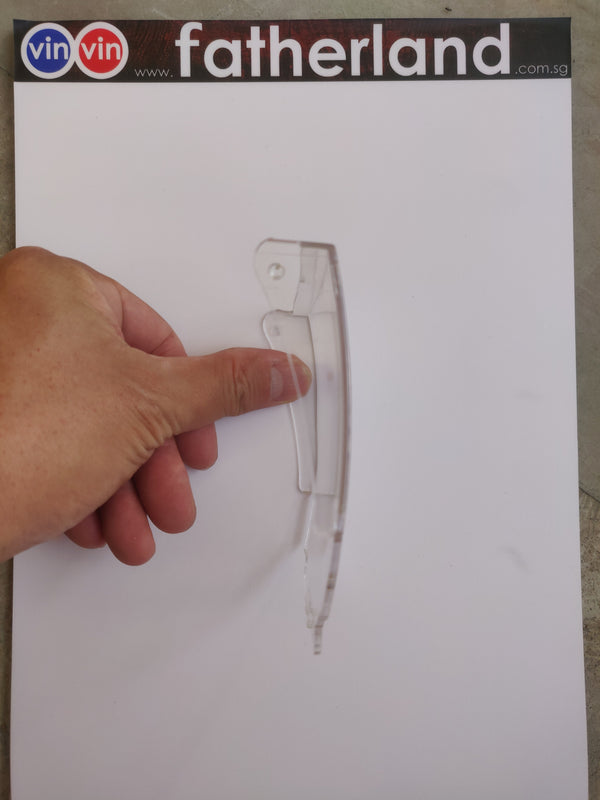

Hinged Cover & Hinged Cover Seals

• Range of accessories to provide protection
against accidental damage and extra security
• Fully compatible with all call points
• Customised branding available

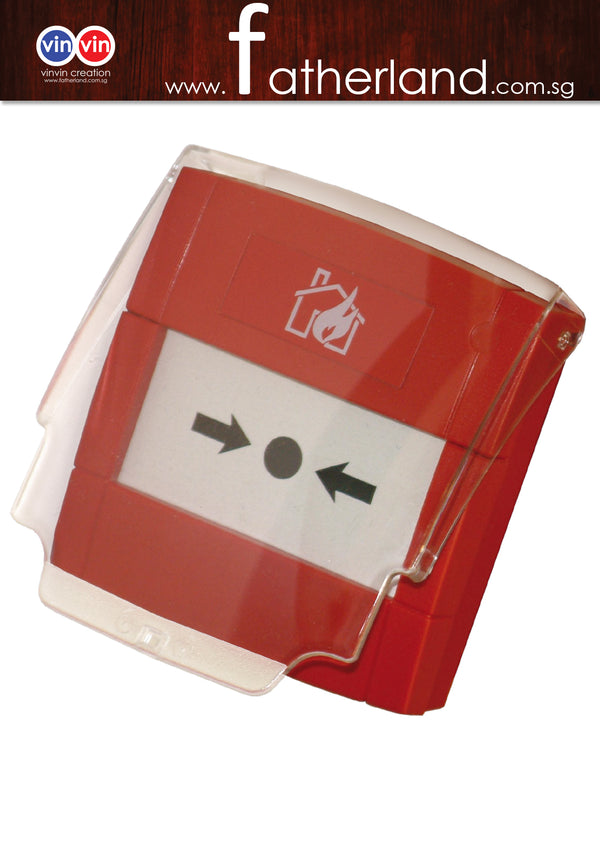

Fitting a transparent hinged cover to a call point provides additional protection
from accidental operation. They are particularly useful in high traffic areas such
as stairwells and corridors in schools and public buildings, where the volume
of traffic can result in accidental operation of the call point causing nuisance
alarms.
With the addition of the hinged cover seal, which consists of a breakable nylon
tie down, the incidence of malicious false alarms can also be reduced, as to
operate the device the seal must first be broken. This will deter the casual
vandal whilst the device remains operable to the more determined user.
All MCP indoor call points and WCP outdoor call points can be fitted with these
accessories. The hinged cover can also be customer branded. For more
details please contact our sales department.

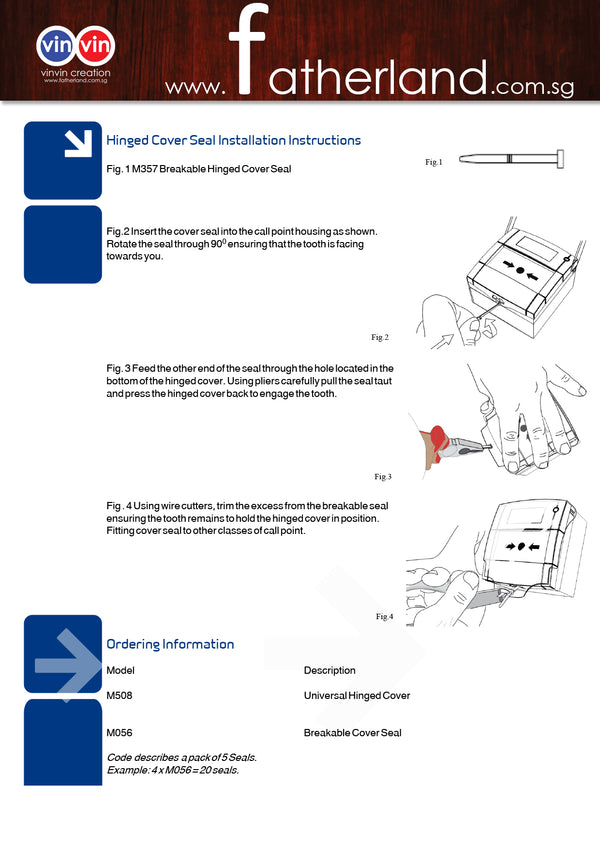

Hinged Cover Seal Installation Instructions
Fig. 1 M357 Breakable Hinged Cover Seal
Fig.2 Insert the cover seal into the call point housing as shown.
Rotate the seal through 900 ensuring that the tooth is facing
towards you.
Fig. 3 Feed the other end of the seal through the hole located in the
bottom of the hinged cover. Using pliers carefully pull the seal taut
and press the hinged cover back to engage the tooth.
Fig . 4 Using wire cutters, trim the excess from the breakable seal
ensuring the tooth remains to hold the hinged cover in position.
Fitting cover seal to other classes of call point.
